All-in-One Controlled-Atmosphere & Vacuum Furnace
Sentro Tech’s 1600°C atmospheric vacuum furnaces facilitate operation of firing cycles where atmosphere condition can be altered during operation cycle, from oxidizing, (such as air to inert atmosphere), or argon/nitrogen to vacuum. This type of atmospheric vacuum furnace makes multi-atmosphere process in one cycle possible: binder burn out in air and parts sintering under vacuum or inert gas atmosphere. These atmosphere furnaces are designed for accurate air/inert gas flow rate control, accurate temperature control, excellent temperature uniformity, long lasting performance and safe operations. Our vacuum furnaces are ideal for vacuum atmosphere brazing, sintering, surface treatment, thermal heat treatment and high temperature material process including stainless steel, titanium, aerospace material, silicon carbide wafer, other metals and ceramics.
STV-1600°C Atmospheric Vacuum Furnace Features
- Max working temperature: 1600°C in vacuum, inert atmosphere and air.
- 208/220V single phase for all models except STV-1600°C-181818, STV-1600°C-242424 & STV-1600°C-363636 (STV-1600°C-181818 STV-1600°C-242424 require three phases)
- Max vacuum: 10-2 torr
- Excellent temperature uniformity
- 30 Segment Easy Use PID Programmable Temperature Controller, allows the control of heating rates, dwells (time holds) and cooling rates
- All models use Ceramic fiber board lining to ensure energy efficiency
- All models use Long Life Platinum/Rhodium B Type Thermocouple
- One Year Limited Warranty on All Electronic Part
- Most models are in stock for quick delivery
- Custom sizes available on request

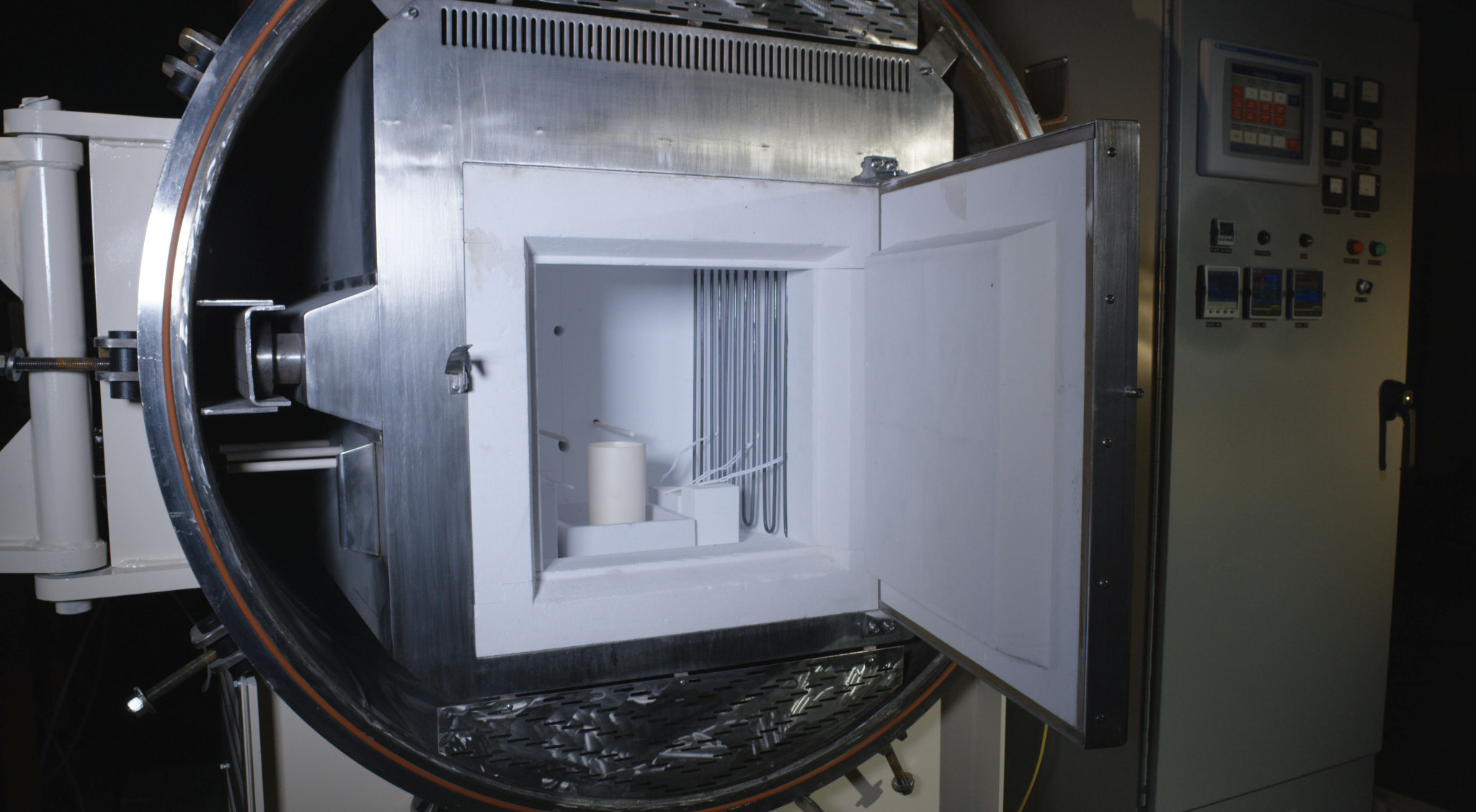

- MoSi2 heating elements are designed in a unique U shaped configuration to ensure the longest heating element life, best heat radiation properties at high temperature and easy exchange
See How Our Lab Furnaces Compare
Browse STV-1600°C Atmospheric Vacuum Furnace Models
| MODEL | Chamber H x W x D | Outside Dimensions | Temperature (c) | Power (KW) | Amps | Volts |
|---|---|---|---|---|---|---|
 STV-1600°C-666 |
6″ x 6″ x 6″ | 40″ x 30″ x 52″ | 1600°C | 4 | 25A | 208/240V 1-Phase |
| STV-1600°C-888 |
8″ x 8″ x 8″ | 44″ x 33″ x 58″ | 1600°C | 6 | 40A | 208/240V 1-Phase |
| STV-1600°C-101012 |
10″ x 10″ x 12″ | 49″ x 37″ x 66″ | 1600°C | 9 | 50A | 208/240V 1-Phase |
| STV-1600°C-101016 |
10″ x 10″ x 16″ | 55″ x 41″ x 75″ | 1600°C | 16 | 90A | 208/240V 1-Phase |
| STV-1600°C-181818 |
18″ x 18″ x 18″ | 81″ x 52″ x 95″ | 1600°C | 30 | 90A | 208/240V 3-Phase |
| STV-1600°C-242424 |
24″ x 24″ x 24″ | 81″ x 62″ x 95″ | 1600°C | 50 | 150A | 208/240V 3-Phase |
Frequently Asked Questions
What is a 1600°C atmospheric vacuum furnace used for?
A 1600°C atmospheric vacuum furnace is used for high-temperature processes including vacuum brazing, sintering, surface treatment, and thermal heat treatment. It is ideal for processing a wide range of materials such as stainless steel, titanium, aerospace materials, silicon carbide wafers, and other metals and ceramics.
Can this furnace switch between atmosphere conditions during a single operation cycle?
Yes. SentroTech’s 1600°C atmospheric vacuum furnace is designed as an all-in-one controlled-atmosphere and vacuum furnace, allowing atmosphere conditions to be changed during a single operation cycle. For example, binder burnout can be performed in air, followed by parts sintering under vacuum or inert gas atmosphere — all within one continuous cycle.
What is the maximum vacuum and temperature this furnace can achieve?
SentroTech’s STV-1600°C atmospheric vacuum furnace reaches a maximum working temperature of 1600°C (2910°F) and a maximum vacuum level of 10⁻² torr. These specifications apply across vacuum, inert atmosphere, and air operating conditions.
Are SentroTech’s atmospheric vacuum furnaces available in different sizes?
Yes. The STV-1600°C atmospheric vacuum furnace is available in multiple chamber sizes ranging from 6″x6″x6″ up to 24″x24″x24″. Most models are in stock for quick delivery, and custom sizes are available upon request.
What temperature control system does the STV-1600°C vacuum furnace use?
The STV-1600°C atmospheric vacuum furnace features a 30-segment PID programmable temperature controller, allowing precise control of heating rates, dwell time holds, and cooling rates. All models also include long-life Platinum/Rhodium B-Type thermocouples and ceramic fiber board lining for excellent temperature uniformity and energy efficiency.
