1200°C (2190°F) Muffle Box Furnance
Ideal for Laboratory & Production Applications

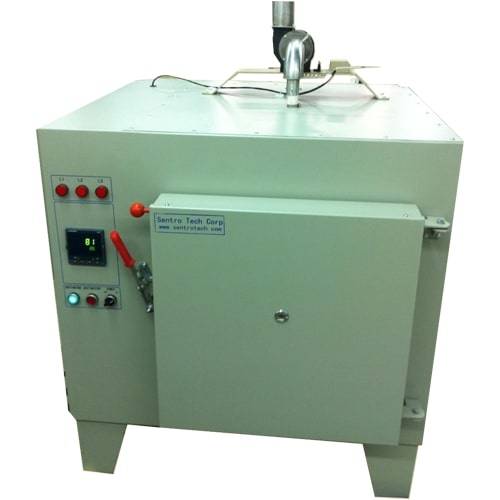

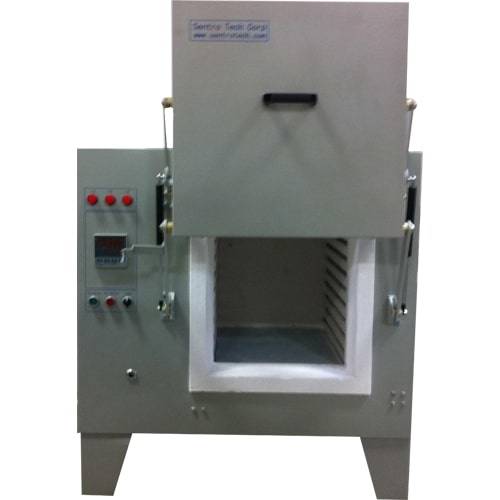

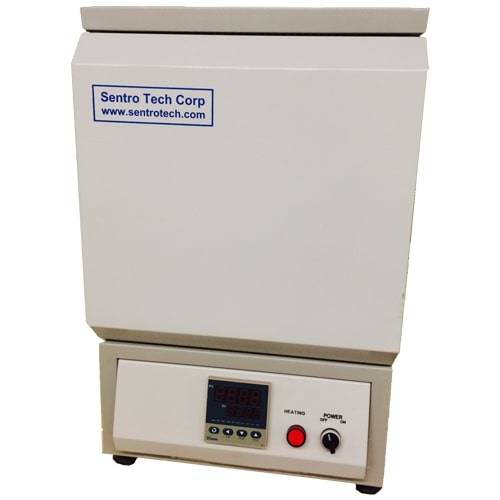

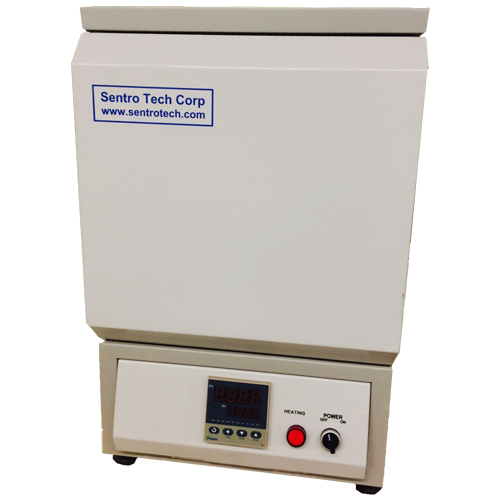

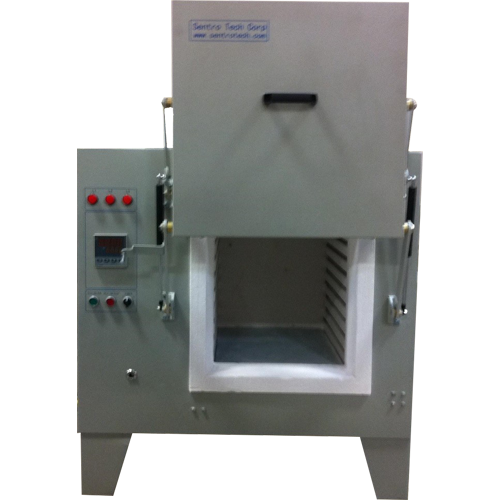

The ST-1200°C Low Cost Box furnace is equipped with a double shell design to ensure low outside furnace temperature. This makes it ideal for laboratory, universities, and any small production scale applications. These furnaces are designed for accurate temperature control, excellent temperature uniformity, long lasting performance, and safe operations. The temperature ranges up to 1200°C and operate with 208/240V.
Price Out Your New Box Furnace
ST-1200°C Box Furnace Features
- Max working temperature: 1200C
- 208/220V single phase for all the model except ST-1200°C-161622 & ST-1200°C-242424 ( ST-1200°C-161622 & ST-1200°C-242424 require three phases)
- Excellent temperature uniformity
- 30 Segment Easy Use PID Programmable Temperature Controller, allow to control heating rates, dwells ( time holds) and cooling rates
- The heating elements are designed in a unique configuration lay directly on fiber groove surface to ensure the longest heating element life, best heat radiation properties and minimum distortion of heating elements at high temperature
- All models use Ceramic fiber board lining to ensure energy efficiency
- All model uses Long Life Platinum/Rhodium S Type Thermocouple
- Safety feature includes a safety interlock system to shut off power when furnace door open
- One Year Limited Warranty on All Electronic Parts
- Most models are in stock for quick delivery
Browse ST-1200°C (2190°F) Muffle Furnace Models
| Model | Chamber H x W x D | Outside Dimensions | Temperature (c) | Power (KW) | Amps | Volts | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Model: |
 ST-1100°C-458
|
Chamber H x W x D: | 4” x 5” x 8” | Outside Dimensions: | 30” x 17” x 24” | Temperature: | 1200°C | Power (KW): | 2 | Amps: | 15A | Volts: | 110V 1-Phase | |
|
|
Model: |
ST-1200°C-666
|
Chamber H x W x D: | 6” x 6” x 6” | Outside Dimensions: | 16” x 18” x 23” | Temperature: | 1200°C | Power (KW): | 2 | Amps: | 15A | Volts: | 208V 1-Phase | |
|
|
Model: |
ST-1200°C-668
|
Chamber H x W x D: | 6” x 6” x 8” | Outside Dimensions: | 18” x 21” x 30” | Temperature: | 1200°C | Power (KW): | 3 | Amps: | 20A | Volts: | 208V 1-Phase | |
|
|
Model: |
ST-1200°C-678
|
Chamber H x W x D: | 6" x 7" x 8" | Outside Dimensions: | 31" x 20" x 25" | Temperature: | 1200°C | Power (KW): | 3 | Amps: | 15A | Volts: | 208V 1-Phase | |
|
|
Model: |
ST-1200°C-7812
|
Chamber H x W x D: | 7" x 8" x 12" | Outside Dimensions: | 33" x 21" x 28" | Temperature: | 1200°C | Power (KW): | 4 | Amps: | 25A | Volts: | 208/240V 1-Phase | |
|
|
Model: |
ST-1200°C-101016
|
Chamber H x W x D: | 10" x 10" x 16" | Outside Dimensions: | 36" x 24" x 34" | Temperature: | 1200°C | Power (KW): | 7 | Amps: | 40A | Volts: | 208/240V 1-Phase | |
|
|
Model: |
ST-1200°C-121216
|
Chamber H x W x D: | 12" x 12" x 16" | Outside Dimensions: | 39" x 26" x 34" | Temperature: | 1200°C | Power (KW): | 8 | Amps: | 50A | Volts: | 208/240V 1-Phase | |
|
|
Model: |
ST-1200°C-161622
|
Chamber H x W x D: | 16" x 16" x 22" | Outside Dimensions: | 42" x 44" x 40" | Temperature: | 1200°C | Power (KW): | 14 | Amps: | 60A | Volts: | 208/240V 3-Phase | |
|
|
Model: |
ST-1200°C-121212
|
Chamber H x W x D: | 12” x 12” x 12” | Outside Dimensions: | 23” x 21” x 32” | Temperature: | 1200°C | Power (KW): | 6 | Amps: | 35A | Volts: | 208V 1-Phase | |
|
|
Model: |
ST-1200°C-242424
|
Chamber H x W x D: | 24" x 24" x 24" | Outside Dimensions: | 49" x 51" x 46" | Temperature: | 1200°C | Power (KW): | 23 | Amps: | 90A | Volts: | 208/240V 3-Phase | |
