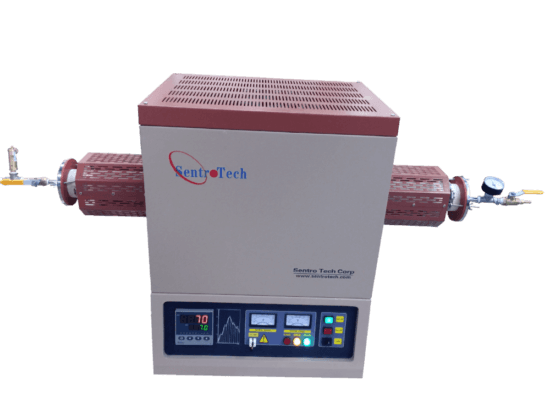

High Temperature Tube Furnace for Laboratory & Small-Scale Production Applications
Sentro Tech’s 1700°C (3090°F) high-temperature tube furnace suits laboratory and small-scale production applications that require extremely high and/or prolonged temperatures. With a full suite of standard features, this lab tube furnace can be fitted to suit your needs with customizable sizing and heating zone features.
Request a quote today on a 1700°C high-temperature tube furnace.
STT-1700°C (3090°F) High Temperature Tube Furnace Features
- 30-segment easy use PID programmable temperature controller
- Industrial grade MOSi2 heating elements
- High efficiency ceramic fiber insulation
- Heat isolating ceramic tube
- Long life B-type thermocouple
- Stainless steel sealing plate
- Worm gear clamp
- Set of fasteners
- Vacuum and process gas connection nozzle
- One-year limited warranty on all electronic parts
- Standard High Alumina Tube Size: 1.5″, 2.0″, 2.5″, 3.0″ and 3.5″
- Standard SiC Tube Sizes: 1.5″, 2.0″, 2.5″, 3.0″, 3.5″, 4.0″ , 6.0″ and 8.0″
- Standard Heating Zone Lengths: 6″, 12″, 18″, 24″, and 36″
- Custom heating zone length up to 48” is available, as well as multi-zone furnaces with independent controller systems.
Find Your High Temperature Tube Furnace
Contact Sentro Tech today and speak with one of our representatives to learn more about which high-temperature tube furnace is right for your application.
Browse STT-1700°C (3090°F) Laboratory Tube Furnace Models
| MODEL | Tube Heat Zone | Outside Dimensions | Temperature (°C) | Power (KW) | Amps | Volts |
|---|---|---|---|---|---|---|
 STT-1700°C-4 |
4 | 23″ H x 16″ W x 18″ D | 1700° C | 3 | 20A | 208/240V 1-Phase |
| STT-1700°C-6 |
6 | 28″ H x 19″ W x 19″ D | 1700° C | 4 | 25A | 208/240V 1-Phase |
| STT-1700°C-12 |
12 | 28″ H x 41″ W x 21″ D | 1700° C | 7 | 40A | 208/240V 1-Phase |
| STT-1700°C-24 |
24 | 34″ H x 57″ W x 22″ D | 1700° C | 12 | 60A | 208/240V 1-Phase |
Frequently Asked Questions
What applications is the 1700°C high-temperature tube furnace designed for?
SentroTech’s 1700°C (3090°F) high-temperature tube furnace is designed for laboratory and small-scale production applications that require extremely high and/or prolonged temperatures. Its full suite of standard features and customizable sizing make it adaptable to a wide range of research and production needs.
What tube sizes are available for the STT-1700°C high-temperature tube furnace?
The STT-1700°C high-temperature tube furnace is available with standard High Alumina tube sizes of 1.5″, 2.0″, 2.5″, 3.0″, and 3.5″, as well as standard SiC tube sizes of 1.5″, 2.0″, 2.5″, 3.0″, 3.5″, 4.0″, 6.0″, and 8.0″. Standard heating zone lengths range from 6″ to 36″, with custom heating zone lengths up to 48″ also available.
Can the STT-1700°C tube furnace be customized for multi-zone heating?
Yes. In addition to custom heating zone lengths up to 48″, SentroTech’s 1700°C high-temperature tube furnace is available in multi-zone configurations with independent controller systems, making it suitable for more complex thermal processing requirements.
What temperature control system does the 1700°C high-temperature tube furnace use?
The STT-1700°C high-temperature tube furnace features a 30-segment PID programmable temperature controller, allowing precise control of heating rates, dwell time holds, and cooling rates. It also includes industrial-grade MoSi2 heating elements, a long-life B-type thermocouple, and high-efficiency ceramic fiber insulation for accurate and consistent temperature performance.
Does the STT-1700°C tube furnace support vacuum and gas processing?
Yes. The STT-1700°C high-temperature tube furnace includes a vacuum and process gas connection nozzle as a standard feature, along with a stainless steel sealing plate and worm gear clamp, making it ready for controlled atmosphere and vacuum processing applications straight out of the box.
