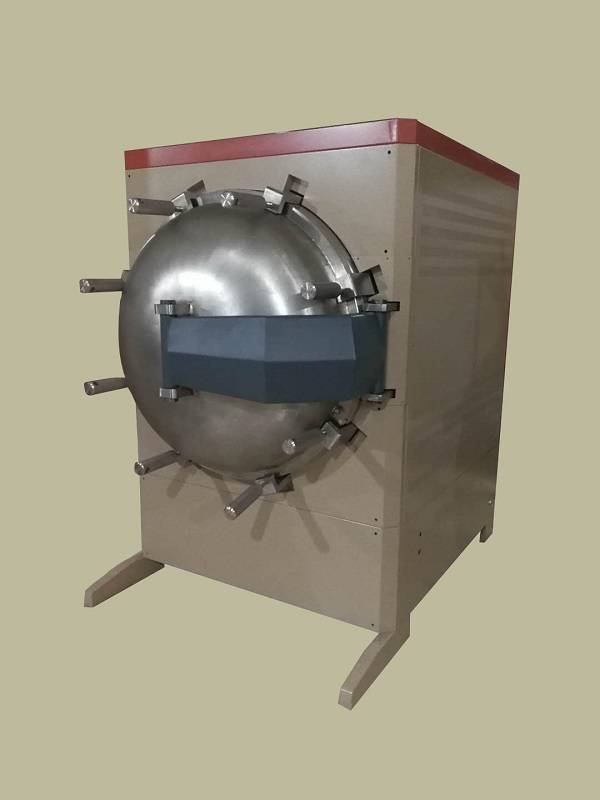

STHV-1700°C (3092°F) High-Temperature Vacuum Sintering Furnace

Low cost vacuum and controlled atmosphere furnace for 3D printing, laboratories, and manufacturing production

Consider this versatile and controlled atmosphere vacuum sintering furnace for 3D metal part printing. The STHV low-cost sintering furnace uses 1700°C grade high alumina ceramic lining and molybdenum heating element.

See How Our Sintering Furnaces Compare

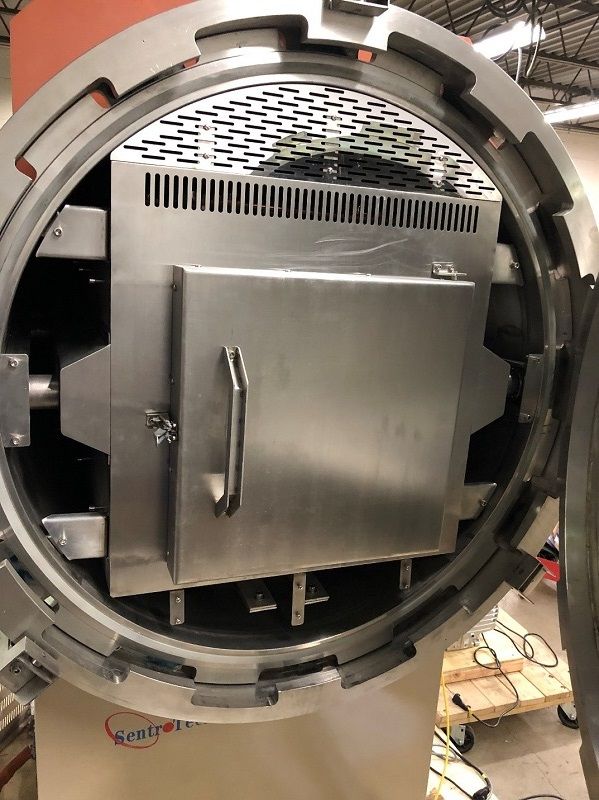

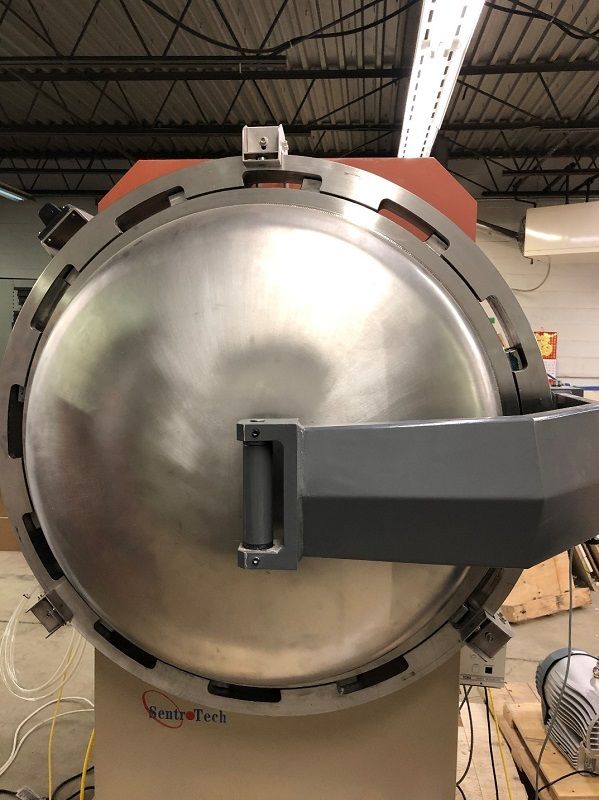

Sentro Tech's STHV-1700°C Vacuum Sintering Furnace Features

  • Max Vacuum (Torr) 10-4 Torr Vacuum
  • Max pressure: 1100 Torr
  • Controller: Eurotherm Nanodac 100 program x 20 segments per program, USB and EtherNet plugs, data recording and computer communication. Temperature and vacuum data are recorded in Eurotherm Nanodac
  • Instrutech high vacuum gauge WASP WGM 701, measurement from 760 torr to 7.6 x 10-10 torr
  • Osaka Turbo Molecular Pump System, 450L/S, 10-9 torr Ultimate pressure, DN 160 ISO-F include TC 353 Digital display
  • Edwards NXDS10i oil-free scroll pump 7.5 CFM0.005 Torr ultimate base pressure
  • Two type S thermocouples: one for control and one for over temperature high alarm

Browse STHV-1700°C (3902°F) Sintering Vacuum Furnace Models

Model Chamber H x W x D Outside Dimensions Temperature (c) Power (KW) Amps Volts
