What Is Induction Heating?
Induction heating is a non-contact method that uses electromagnetic induction to generate heat directly inside an electrically conductive workpiece. An alternating current runs through a copper coil, which creates a rapidly changing magnetic field. When you place a conductive part inside that field, the field induces eddy currents in the part itself, and the part's own electrical resistance to those currents produces heat. The coil never touches the workpiece, and in many cases, the coil stays relatively cool while the part heats up.
Because the heat is generated inside the metal, induction can bring a small conductive part to temperature very quickly. That speed is why you see it in forging, brazing, hardening of specific surfaces, and metal joining.
What Is Resistance Heating?

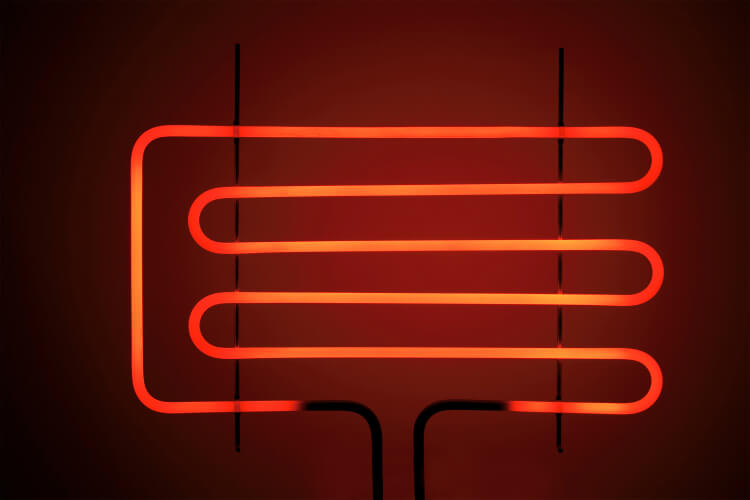

Resistance heating is the method behind virtually every high-temperature furnace on the market, including everything SentroTech builds. Instead of inducing current in the workpiece, resistance heating passes current through a dedicated heating element. The element resists the flow of electricity, and that resistance releases energy as heat, which then transfers to whatever is inside the chamber.
How Does Resistance Heating Work Inside a Furnace?
Current flows through heating elements mounted in the walls or roof of an insulated chamber. Those elements radiate heat, and the enclosed, insulated space allows that heat to build up and distribute until the entire chamber reaches a stable, uniform temperature. The workpiece doesn't need to be electrically conductive, be a specific shape, or sit in any particular spot to get hot. It just needs to be inside the chamber.
The element material sets the ceiling on temperature. SentroTech's MoSi2 heating elements, for example, are ceramic-based molybdenum disilicide elements available in 1700°C and 1800°C grades, which is what lets a resistance furnace reach the extreme temperatures that sintering and advanced ceramics work demand. A programmable PID temperature controller manages the power feeding those elements, holding the setpoint tightly over long cycles.
Where the Two Methods Split
The cleanest way to think about it is this: induction heats a part; resistance heats an environment. Induction concentrates energy into a localized zone of a conductive object. Resistance fills an entire insulated volume with even, controllable heat. That single distinction drives most of the practical trade-offs.
Material Compatibility
Induction only works on electrically conductive materials, and it works best on magnetic metals like steel. Ceramics, glass, composites, powders, and most non-metals cannot be heated by induction directly. Resistance heating doesn't care what the material is, so it handles ceramics, powder compacts, mixed loads, and non-conductive samples without any workaround..
Uniformity
Induction produces a temperature gradient, hottest at the surface nearest the coil and cooler toward the core, because eddy currents concentrate near the outer skin of the part. A resistance furnace chamber soaks the whole load evenly, which is essential when part quality depends on consistent grain structure or phase transformation.
Geometry
Induction coils are tuned to a specific part shape and size. Change the part, and you often need a new coil. A furnace chamber accepts a wide range of shapes and batch sizes with no retooling.
Induction Heating Advantages
A fair comparison names what the other technology does well, so here are the genuine induction heating advantages for the right job:
- Speed on small conductive parts. Heat is generated inside the metal, so a small billet or fastener can reach a temperature in seconds.
- Localized, selective heating. You can harden a gear tooth or a shaft surface without heating the whole component, which is ideal for surface hardening and precision brazing.
- Clean, contactless operation on a production line. No open flame and no contact make it a strong fit for automated, repetitive single-part cycles.
On the efficiency question, induction heating can be highly efficient in the narrow scenario it was built for, because energy goes straight into the part rather than warming a chamber first. That advantage shrinks or disappears once you need to heat a full load, a non-conductive material, or hold a large volume at temperature for hours, which is exactly the territory where furnaces live.
Why Resistance Heating Wins for Furnace Applications
For the processes SentroTech customers run, resistance heating is the correct technology.
- High, stable temperatures over long holds. Sintering, calcining, and heat treatment require a load held at a precise temperature for hours. A resistance chamber does this natively. Sintering furnaces built this way densify powder metal and ceramic parts with the consistency those processes require.
- True chamber uniformity. When every part in a batch must be identical, even heat across the full chamber is critical.
- Any material, any shape, mixed loads. Ceramics, glass, powders, and non-conductive research samples all heat without special fixturing.
- Controlled atmospheres. Because the heating occurs in a sealed, insulated chamber, you can pull a vacuum or introduce inert gas. SentroTech's vacuum furnaces let you shift from air to vacuum to argon within a single firing cycle.
- Batch throughput.A muffle furnace processes a full chamber of samples at once for annealing, ashing, and materials testing, rather than one part at a time.
Choosing the Right Fit
Choose induction when you're heating small conductive metal parts one at a time, and you want a specific zone hot in a hurry.
Choose a resistance furnace when you're working above roughly 1200°C, heating non-metals or mixed loads, you need every part in a batch to match, or you require a vacuum or inert atmosphere. Most laboratory and industrial furnace work requires resistance heating.
Why Source Your Furnace From SentroTech
There's a strong case for making SentroTech your partner.
- We've manufactured high-temperature furnaces in the United States since 1998, and we build the whole system in-house, from the furnace and its MoSi2 elements to the integrated temperature control package, so every component is engineered to work together.
- Most standard models are kept in stock for quick delivery, and custom configurations are available when an off-the-shelf unit will not do.
- SentroTech's MoSi2 heating elements typically run 30% or more below other manufacturers, with express shipping in 2 to 3 days when you need a replacement fast.
- Every furnace is backed by a one-year limited warrantyon electronic parts and the kind of responsive support that has kept labs and manufacturers such as 3M, NASA, and GE coming back.
Frequently Asked Questions
At what temperature ranges does resistance heating outperform induction heating for process stability and part quality
Above about 1200°C, and especially in the 1400°C to 1700°C range where sintering, ceramics, and advanced heat treatment operate, resistance heating is the more dependable choice. At those temperatures, you typically need to hold a full load steady for an extended soak, and a resistance chamber with high-quality elements and PID control keeps the setpoint stable throughout the cycle. Induction's localized, surface-biased heating makes sustained, uniform, high-temperature stability much harder to achieve across a batch.
How does the thermal uniformity of a resistance furnace chamber compare to localized induction heating, and why does it matter?
A resistance furnace surrounds the load with radiant heat inside an insulated chamber, so the entire volume settles at close to the same temperature. Induction concentrates heat where eddy currents form, which leaves the surface hotter than the core and the near-coil region hotter than the far side. Uniformity matters because heat-treatment outcomes, such as grain structure, phase transformation, and densification, depend on every part of the load experiencing the same thermal history. Uneven heating means inconsistent parts, and in research or production, that translates directly into scrap and unreliable data.
Can I retrofit an existing resistance furnace with different heating elements to change its maximum temperature rating?
Often, yes, because the element material sets the temperature ceiling. Moving to a higher-grade element can raise a furnace's usable range, though the insulation, wiring, controller, and chamber design all have to support the higher target, so it's not always a simple swap. SentroTech manufactures MoSi2 elements in 1700°C and 1800°C grades along with custom heating elements, and the team can tell you whether a given furnace can be upgraded or whether a purpose-built unit makes more sense for the temperature you're after.
Rely on SentroTech for Superior Industrial Furnaces & Expert Advice
If you're weighing options for a specific process, it usually helps to talk it through with someone who builds these systems. SentroTech's engineers can walk through your temperature range, load size, and atmosphere needs and point you to the right configuration for your operation. Request a quote or give us a call today.
